Digital Torque Tester For Lamp Holders With High-Precision LCD Display
  • Name
  • Name
  • Name
  • Name

Digital Torque Tester For Lamp Holders With High-Precision LCD Display

MOQ: 1
Preis: Verhandlungsfähig
Standardverpackung: Karton
Lieferfrist: 30 Tage
Zahlungs-Methode: T/T
Lieferkapazität: 20 Sätze pro Monat
Einzelheiten Informationen
Beschreibung des Produkts
Ausführliche Information
Herkunftsort
China
Markenname
Sinuo
Zertifizierung
Calibration Certificate(Cost Additional)
Modellnummer
SN993
Drehmomentbereich:
0–10 N·m (anpassbar)
Messgenauigkeit:
≤ 1%
Wiederholbarkeit:
≤0.5% RUMPFSTATION
Linear:
≤0.5% RUMPFSTATION
Hysterese:
≤0.5% RUMPFSTATION
Befestigungen:
E14, E27, B15, B22 (anpassbar)
Hervorheben:

digital torque tester for lamp holders

,

high-precision LCD torque tester

,

lamp holder torque testing equipment

Beschreibung des Produkts

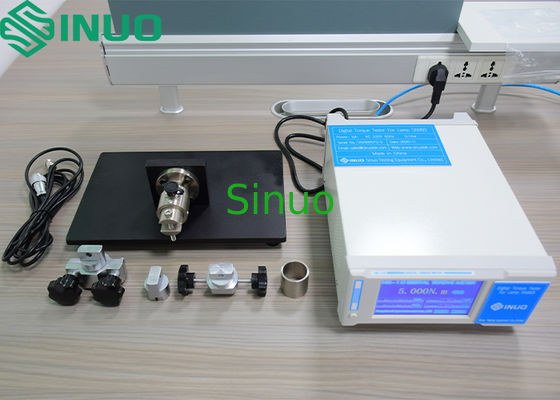

Digital Torque Tester For Lamp Holders With High-Precision LCD Display
Torsion resistance is a critical safety requirement for the mechanical strength of lamp holders. This high-precision digital torque tester meets the anti-torque measurement requirements for various light sources including LED bulbs, energy-saving lamps, incandescent lamps, and fluorescent lamps.
Product Features
  • 5-inch high-definition LCD touch screen display with clear parameter visualization
  • Fixture-based lamp cap fixation for direct positive/negative torque measurement
  • Adjustable torque test range: 0~10N.m (custom ranges available)
  • Customizable lamp cap fixtures for various specifications
  • High-reliability strain gauge torque sensor with maximum value retention and alarm functions
  • Compliant with international and domestic standard requirements
Technical Specifications
Parameter Value
Measuring range 0-10N*m
Measuring accuracy ≤1%
Repeatability ≤0.5% FS
Linear ≤0.5% FS
Hysteresis ≤0.5% FS
Overload capacity 120% FS
Temperature compensation range -10℃ to 60℃
Rated operating conditions 25±5℃, ≤65% RH, 220V 60Hz
Allowable working conditions 0-40℃, ≤75% RH, 220V 60Hz
Dimensions (W×H×L) 330mm×110mm×335mm
Power consumption 15VA
Compatible Fixtures
Fixture Type Standard Reference
E14 IEC62560 Figure 3
E27 IEC62560 Figure 3
B15 IEC62560 Figure 4
B22 IEC62560 Figure 4
Note: Test gauges should be prepared by user and are not included with this machine.
Digital Torque Tester For Lamp Holders With High-Precision LCD Display 0
