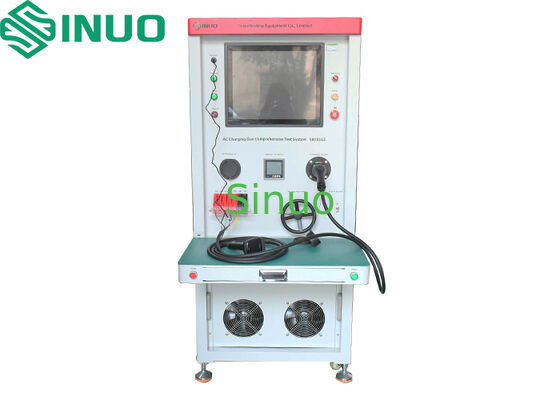

Vehicle Charging Gun Comprehensive Test System for GB/EU/UL Standards

MOQ:	1
Preis:	Verhandlungsfähig
Standardverpackung:	Sperrholzkiste
Lieferfrist:	30 Tage
Zahlungs-Methode:	T/T
Lieferkapazität:	1 eingestellt pro Monat

Ausführliche Information

Beschreibung des Produkts

Ausführliche Information

Herkunftsort

China

Markenname

Sinuo

Zertifizierung

Calibration Certificate (Cost Additional)

Modellnummer

Die Ausnahme gilt für:

Unterstützt Standards:

GB-/EU-/UL-Standards

Teststation:

Einzelstation

Thermistor-Testbereich:

100 – 50.000 Ω

Strombelastbarkeit:

0-35A

Prüffunktion:

Integrierte Widerstands-, Durchgangs- und HV-Dielektrizitätstests

Datenverwaltung:

QR-Code-Rückverfolgbarkeit und automatisierte Berichtserstellung

Hervorheben:

Vehicle charging gun test system

GB EU UL charging test equipment

Vehicle testing equipment with warranty

Beschreibung des Produkts

Vehicle Charging Gun Comprehensive Test System for GB/EU/UL Standards

This comprehensive test system performs functional inspection of AC plugs according to Chinese (GB), European (EU), and American (UL) standards. Each plug is assigned a unique QR code, with test results automatically saved in reports and qualified results printed directly. All functions are tested automatically in a single operation, delivering high efficiency and labor savings ideal for mass production full inspection in manufacturing facilities.

Testing Functions

Breakage, continuity, short circuit, and wiring sequence tests for individual wires
Continuity resistance test of the main conductor
Built-in resistance measurement (including pressed and unpressed states of push-button switches)
Current carrying capacity verification and voltage drop measurement
Insulation test between wires
Dielectric withstand (high-voltage) test between wires
Thermocouple wire testing

Technical Specifications

Parameter	Specification
Power Supply	Single-phase AC 220V / 50Hz
Air Supply	0.6 MPa
Control System	PLC + Industrial PC
Barcode Scanning	Integrated scanner reads barcodes/QR codes on test samples, enabling automatic association with test records for traceability
Wire Continuity Tests	Break, continuity, short circuit, and wiring sequence tests via PLC Input/Output scanning with automatic pass/fail determination
Built-in Resistance Range	1 - 5000 Ω, Accuracy: 1% with configurable upper/lower limits
CC & PE Resistance	16A AC plug: Not Pressed RC: 680Ω, Pressed RC+R4: 3.38 kΩ 32A AC plug: Not Pressed RC: 220Ω, Pressed RC+R4: 3.52 kΩ 63A AC plug: Not Pressed RC: 100Ω, Pressed RC+R4: 3.4 kΩ Measurement accuracy: 1%-2%
Thermistor Testing Range	100 - 50,000 Ω, Accuracy: 2% with configurable limits
Current Carrying Capacity & Voltage Drop Test	Measures voltage drop across connectors under rated and overload conditions. Built-in three-phase adjustable transformer: 0-380V output, adjustable three-phase load 0-35A. Supported test ranges: 3.3 kW 16A single-phase, 7.4 kW 32A single-phase, 11 kW 16A three-phase, 22 kW 32A three-phase
Insulation Resistance Test	Single-phase: L-N, L-E, E-N. Three-phase: L1/L2/L3/E-N, L1/L2/L3/N-E, N/L2/L3/E-L1, L1/N/L3/E-L2, L1/L2/N/E-L3. Parameters: Test voltage: DC 100-1000V (adjustable), Lower limit: 1 M-1 GΩ (adjustable), Accuracy: ±5%, Alarm when resistance < set value
Dielectric Withstand (Hi-Pot) Test	Single-phase: L-N, L-E, E-N. Three-phase: L1/L2/L3/E-N, L1/L2/L3/N-E, N/L2/L3/E-L1, L1/N/L3/E-L2, L1/L2/N/E-L3. Parameters: Test voltage: AC 0-5 kV / DC 0-6 kV (adjustable), Leakage current limit: AC 0.1-20 mA, DC 0.01-5 mA, Accuracy: ±1.5% + 3 digits, Digital voltage display with programmable adjustment, Alarm if leakage current exceeds set value
Test Station	Single station, one product per test
Plug Holders	EU AC vehicle plug holder, EU AC pedestal plug holder, GB AC plug holder, US AC plug holder
Tail Plate	Special pressing fixture matching the test product, with clamp and protective plate
Socket Height	750 - 1000 mm, ergonomically designed
Computer Software	Supports Win 7 and Win 10 with comprehensive parameter configuration. Real-time test result saving for easy access, viewing, and analysis. Communication interfaces reserved for optional MES system connectivity. Test data exportable in TXT or Excel format
Dimensions	W 900 × D 800 × H 1800 mm
Weight	approx. 300 kg
Additional Features	Mobile casters with locking function. MES Connectivity: Optional, additional cost applies
