IEC 62133-1 Battery Thermal Impact Test Chamber 200℃ Thermal Abuse Test Equipment
  • Name
  • Name
  • Name
  • Name

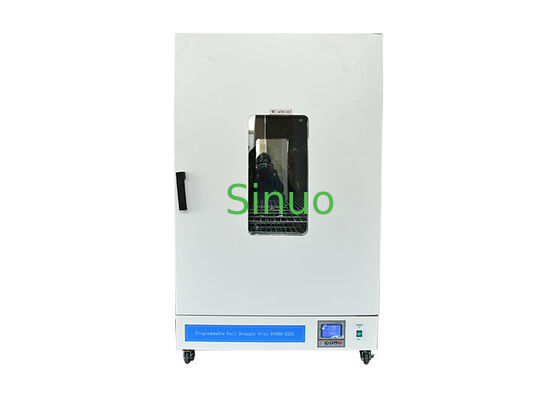

IEC 62133-1 Battery Thermal Impact Test Chamber 200℃ Thermal Abuse Test Equipment

MOQ: 1
Preis: Customized
Standardverpackung: Sperrholzkiste
Lieferfrist: 30 Tage
Zahlungs-Methode: T/T
Lieferkapazität: 20 Sätze pro Monat
Ausführliche Information
Beschreibung des Produkts
Ausführliche Information
Herkunftsort
China
Markenname
Sinuo
Zertifizierung
Calibration Certificate (Cost Additional)
Modellnummer
SN556-408L
Temperaturbereich:
Umgebungstemperatur ~ 200℃
Genauigkeit der Temperaturregelung:
±0,5℃
Temperaturgleichmäßigkeit:
±2,0℃ (ohne Last)
Heizrate:
5℃±2℃/min (RT~150℃)
Kontrollmethode:
SPS -Touchscreen -Steuerung
Größe der Arbeitskammer:
B800 × H850 × T600 mm
Isoliermaterial:
Glaswolle mit hoher Dichte
Luftzirkulationssystem:
Erzwungene flache Luftzirkulation
Beschreibung des Produkts
IEC 62133-1 Battery Thermal Impact Test Chamber 200℃ Thermal Abuse Test Equipment

Professional battery thermal abuse testing equipment designed for comprehensive battery safety evaluation under thermal stress conditions.


Product Overview

The Battery Thermal Impact Test Chamber is designed for battery thermal abuse and thermal impact testing in compliance with international battery safety standards including IEC62133-1:2017, IEC62133-2:2017, and IEC60086-4:2019.

This professional testing equipment simulates high-temperature environmental conditions by placing batteries inside a forced hot air circulation chamber. The system heats the battery to a preset temperature at a controlled heating rate and maintains stable thermal conditions for specified durations, enabling manufacturers to evaluate battery safety performance under thermal stress.

Widely used in lithium battery laboratories, EV battery testing centers, consumer electronics manufacturing, energy storage system testing, and certification laboratories.


Compliance Standards
  • IEC62133-1:2017 Clause 7.3.5
  • IEC62133-2:2017 Clause 7.3.4
  • IEC60086-4:2019 Clause 6.5.7

Main Features
  • High-precision PID temperature control system
  • Forced hot air circulation for excellent temperature uniformity
  • PLC touch screen intelligent control interface
  • SUS304 stainless steel inner chamber with corrosion resistance
  • SECC powder-coated steel exterior structure
  • Fast temperature recovery after door opening
  • High-temperature resistant long-axis motor and turbo blower
  • Multiple safety protections including over-temperature and overload protection
  • Optional tempered glass observation window with bursting disk
  • Stable heating performance for lithium battery safety testing
  • Custom chamber dimensions available upon request

IEC 62133-1 Battery Thermal Impact Test Chamber 200℃ Thermal Abuse Test Equipment 0


Technical Parameters
Item Specification
Product Name Battery Thermal Impact Test Chamber
Temperature Range Ambient Temperature ~ 200℃
Temperature Control Accuracy ±0.5℃
Temperature Uniformity ±2.0℃ (No Load)
Heating Rate 5℃±2℃/min (RT~150℃)
Control Method PLC Touch Screen Control
Working Chamber Size W800 × H850 × D600 mm
External Dimensions W1140 × D1130 × H1620 mm
Inner Chamber Material SUS304 Mirror Stainless Steel
Outer Chamber Material SECC Steel Plate with Powder Coating
Insulation Material High Density Glass Wool
Observation Window Tempered Glass with Bursting Disk
Mobility Universal Wheels Installed
Power Supply AC 220V ±10%, 50Hz
Heating Power Approx. 5KW
Air Circulation System Forced Flat Air Circulation
Heating System PID + SSR
Motor High Temperature Resistant Long Axis Motor
Blower Type Multi-Impeller Turbo Fan

Advanced Air Supply Circulation System
Efficient Forced Air Circulation Design

The chamber adopts a high-efficiency forced air conveying circulation system. The circulation motor drives the turbo fan to continuously circulate hot air through the heating system and chamber interior, ensuring:

  • Uniform temperature distribution
  • Reduced energy consumption
  • Stable thermal testing conditions
  • Rapid temperature recovery after door operation
High Performance Components
  • 1HP high-temperature resistant long-axis motor
  • Multi-impeller turbo blower with adjustable airflow plate
  • Optimized internal air duct structure for smooth airflow circulation

IEC 62133-1 Battery Thermal Impact Test Chamber 200℃ Thermal Abuse Test Equipment 1


Frequently Asked Questions
Q1: What standards does this battery thermal impact tester comply with?
A: The equipment complies with IEC62133-1:2017, IEC62133-2:2017, IEC60086-4:2019, and related battery safety testing standards.
Q2: What types of batteries can be tested?
A: The chamber is suitable for lithium-ion batteries, lithium polymer batteries, nickel batteries, EV battery modules, and energy storage batteries.
Q3: What is the maximum testing temperature?
A: The chamber can reach up to 200℃ with precise temperature control.
Q4: Can the chamber size be customized?
A: Yes, customized chamber dimensions and configurations are available based on customer testing requirements.
Q5: Does the equipment include safety protection features?
A: Yes, the tester includes over-temperature protection, overload protection, automatic power cut-off, and optional explosion-proof observation window configurations.
Q6: Is the temperature evenly distributed inside the chamber?
A: Yes, the forced air circulation system ensures excellent temperature uniformity throughout the working chamber.
