Sand and Dust Test Chamber for Automotive Electronics IP5X IP6X IEC60529 Testing

MOQ: 1
Preis: Customized
Standardverpackung: Sperrholzkiste
Lieferfrist: 30 Tage
Zahlungs-Methode: T/T
Lieferkapazität: 5 Sätze pro Monat
Ausführliche Information
Beschreibung des Produkts
Ausführliche Information
Herkunftsort
China
Markenname
Sinuo
Zertifizierung
Calibration Certificate (Cost Additional)
Modellnummer
SN441-2250L
Innenkammer:
1500*1000*1500mm (B*T*H)
Äußere Kammer:
2000*1800*2300 mm (B*T*H)
Feinstaub:
Unter 75 mm
Luftströmungsrate:
Nicht mehr als 2m/s
Schlagzeit:
1s~99h (einstellbar)
Zeitplanung der Prüfzeit:
1s~99h (einstellbar)
Temperaturbereich:
NT2Fächer
Vakuumzeit:
1s~99h (einstellbar)
Beschreibung des Produkts
Sand and Dust Test Chamber for Automotive Electronics IP5X IP6X IEC60529 Testing
Product Overview

The Sand and Dust Test Chamber is a high-performance environmental simulation testing system designed in strict accordance with IEC 60529 IP5X / IP6X standards. It is widely used to evaluate the dustproof performance and sealing reliability of electrical and electronic products, automotive and motorcycle components, outdoor equipment enclosures, and sealing systems and connectors.

This advanced dust ingress testing equipment simulates real-world sandstorm and airborne dust environments to determine how particulate contamination impacts product durability, safety, and performance.

Key Features
  • Accurate IEC60529 Compliance: Fully meets IP5X & IP6X dust protection test requirements, ensuring global compliance for certification.
  • Real Sandstorm Simulation: Recreates natural and vehicle-induced dust environments, improving product reliability validation.
  • Intelligent PLC Control System: Equipped with PLC + touchscreen interface, enabling precise control over dust blowing cycles, test duration, vacuum timing, and airflow parameters.
  • High-Efficiency Dust Circulation Design: Innovative conical funnel + bottom suction + top dispersion system ensures uniform dust distribution, continuous circulation, and repeatable test conditions.
  • Durable Industrial Structure: Stainless steel inner chamber (SUS201 mirror finish) with anti-corrosion coated outer body for long service life under harsh testing conditions.
Working Principle

The system adopts a closed-loop dust circulation mechanism: dust is collected at the bottom funnel, a high-pressure turbine fan extracts and transports dust, dust is redistributed from the top of the chamber, and gravity ensures uniform downward dispersion.

This continuous cycle accurately reproduces dust-laden airflow environments, essential for IP dust ingress testing.

Technical Specifications
Parameter Specification
Inner chamber size 1500*1000*1500mm (W*D*H)
Outer chamber size Approx. 2000*1800*2300mm (W*D*H)
Dust baking temperature range RT+10℃～60℃
Fine dust Below 75um
Air flow rate No more than 2m/s
Dust concentration 2kg/m³
Talc dosage 2～5kg/m³
Dust blowing method Top-down
Air flow meter 1-20L/M
Metal mesh wire diameter 50um
Nominal spacing between lines 75um
Shock time 1s～99h (adjustable)
Test time timing 1s～99h (adjustable)
Dust-blowing control cycle 1s～99h (adjustable)
Vacuum time 1s～99h (adjustable)
Circulation fan Closed alloy low-noise motor. Multi-blade centrifugal fan
Air flow meter The vacuum rate is measured using a digital flow meter
Load-bearing Max. 100kgs
Observation window 1 pcs
Lighting 1 pcs
Control system test piece power socket Dustproof socket AC220V 16A
Control system PLC controller + touch screen (Sinuo)
Vacuum system Pressure regulating valve, suction nozzle, pressure regulating three-piece set, connecting pipe, vacuum pump
Dust heating system Stainless steel mica heating jacket
Inner chamber material SUS201 stainless steel mirror panel
Outer chamber material A3 iron plate electrostatic spraying treatment
Power 3KW (no load)
Safety protection system Phase sequence protection, leakage protection, abnormal protection, instrument over-temperature protection
Frequently Asked Questions
  • What standards does this dust test chamber comply with?
    It complies with IEC 60529 IP5X and IP6X, widely required for enclosure protection testing.
  • What type of dust is used in testing?
    Standard talcum powder with particle size below 75μm is used to simulate fine dust conditions.
  • Is it suitable for automotive testing?
    Absolutely. It is commonly used for automotive components and sealing system validation.

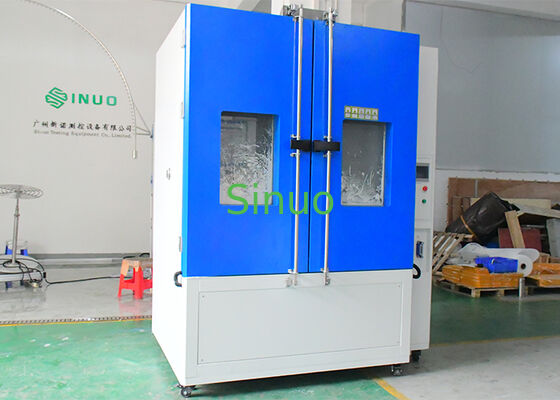

Product Images
Sand and Dust Test Chamber for Automotive Electronics IP5X IP6X IEC60529 Testing 0 Sand and Dust Test Chamber for Automotive Electronics IP5X IP6X IEC60529 Testing 1 Sand and Dust Test Chamber for Automotive Electronics IP5X IP6X IEC60529 Testing 2
