IEC 60529 Full‑featured IPX1‑IPX8 Integrated Waterproof Testing System Waterproof Test Equipment
  • Name
  • Name
  • Name
  • Name

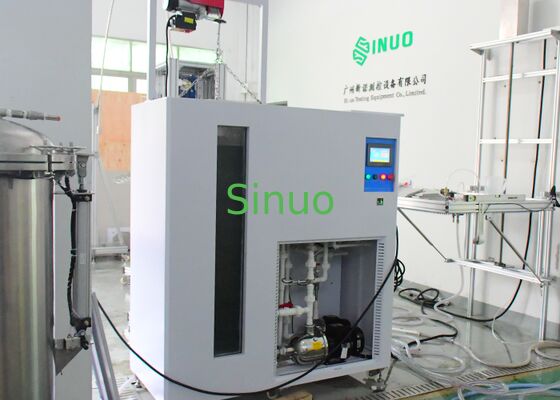

IEC 60529 Full‑featured IPX1‑IPX8 Integrated Waterproof Testing System Waterproof Test Equipment

MOQ: 1
Preis: Verhandlungsfähig
Standardverpackung: Sperrholzkiste
Lieferfrist: 30 Tage
Zahlungs-Methode: T/T
Lieferkapazität: 5 Sätze pro Monat
Ausführliche Information
Beschreibung des Produkts
Ausführliche Information
Herkunftsort
China
Markenname
Sinuo
Zertifizierung
Calibration Certificate (Cost Additional)
Modellnummer
SN4418
Regenfläche:
1000 mm × 1000 mm
Tropföffnung:
φ0.4mm
Niederschlagsmenge:
1 mm/min, 3 mm/min
Tropfhöhe:
200 mm (automatische Steuerung)
Testzeit:
10min (einstellbar)
Material:
Aluminiumlegierung
Schwenkwinkel:
Max. ±175°
Wasserfluss:
>10L/min±5%
Beschreibung des Produkts
IEC 60529 Full-featured IPX1-IPX8 Integrated Waterproof Testing System
Product Overview

The SN4418 Integrated IPX1~8 Waterproof Degree Test System fully complies with IEC 60529:2013 and IEC60335-1 Clause 15 international standards. It integrates vertical drip, oscillating tube, spray nozzle, hose spray, immersion and deep immersion functions to perform complete IPX1/2/3/4/5/6/7/8 waterproof performance tests in one machine. It is widely used for waterproof testing, waterproof grade certification, reliability verification of electronics, lamps, outdoor devices, automotive parts, security equipment and more.

Key Features
  • Full IP rating coverage: IPX1 ~ IPX8 all-in-one solution
  • Fully compliant with IEC 60529:2013 & IEC60335-1 standards
  • Intelligent control: Mitsubishi PLC + 7-inch color touch screen
  • Automatic constant temperature, constant flow, constant pressure control
  • Durable structure: stainless steel + industrial aluminum alloy
  • Complete accessories: turntable, lift bracket, filtration system
  • Centralized control cabinet for all test units

System Configuration
No. Name IP Code Remark
1 Vertical Rain Drip Test Apparatus IPX1~2 Drip area: 1000mm×1000mm
2 Oscillating Tubes Test Apparatus IPX3~4 R200~R1600mm stainless steel tubes
3 Spray Nozzle IPX3~4 Handheld auxiliary spray
4 Hose Nozzle IPX5~6 High-pressure water spray test
5 Integrated Immersion Chamber & Water Tank & Control Cabinet IPX7 Inner size: 650×600×1500mm
6 Deep Immersion Tank IPX8 φ600×1000mm pressure vessel
7 Turntable IPX1~6 Accessory φ600mm, tiltable 0°/15°

Technical Parameters
Vertical Rain Drip Test Apparatus (IPX1/2)
Application Applies to conduct IPX1, IPX2 testing.
Rain area 1000mmX1000mm
Tank material Stainless steel
Dripping aperture ￠0.4mm
Hole distance 20mm
Rainfall Flow 1mm/Min, 3mm/Min, user-set parameters (error: + 0.5mm / min).
Water dripping height 200mm (automatically control by the test equipment)
Test time 10Min, can be set according to the need
Draining Automatically emptying the tank water after the test is completed
Body material Industrial aluminum alloy
Dimensions (LxDxH) 1100X1200X2800mm
Machine structure Wall Mount
Air compressor Silent air compressor
IEC 60529 Full‑featured IPX1‑IPX8 Integrated Waterproof Testing System Waterproof Test Equipment 0
Oscillating Tubes Test Apparatus (IPX3/4)
No. Item Parameters
1 Water supply Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
2 The size of the oscillating tube Standard coming with R200mm, R400mm, R600mm, R800mm, R1000mm R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel
3 Needle hole Φ0.4mm
4 Included angle of two holes IPX3:120°; IPX4:180°
5 Oscillating tube swing angle Max. ±175° can be preset (Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° cannot achieved during actual testing, if without turntable, then 360° can be achieved)
6 Swing speed IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°);
7 Water flow Can be set according to the size of the pendulum and the number of the pin holes (0.07 L/min per hole)
8 Testing time 0.01S～99 hours 59mins,can be preset
9 Pressure gauge 0~0.25MPa
10 Site requirements Dedicated IP waterproof test room, the ground should be flat with illumination 10A waterproof leakage switch (or socket) used for equipment. With good function of inflow and drainage. Ground installation
11 The area According to the oscillating tube chose
IEC 60529 Full‑featured IPX1‑IPX8 Integrated Waterproof Testing System Waterproof Test Equipment 1
Spray Nozzle (IPX3/4)
No. Item Parameter
1 Water supply Water flow rate is 50～150kpa clean water without inclusion.
2 Spray nozzle parameters external diameter: Ф102mm spherical diameter: SФ75.5mm There is a middle hole and There are 24 holes in the internal circle of holes of which the included angle is 30°. There are 96 holes in the external circle of holes of which the included angle is 15°. 121 holes in total. The hole diameter: Ф0.5mm It is made of brass.
3 Water flow 10L/min±5%, adjustable by flow meter (flow meter is not included in this item, optional)
4 Range of pressure gauge 0～0.4Mpa
5 Baffle Removable
6 Pressure gauge 0~0.25MPa
7 Site requirements Dedicated IP waterproof test room, the ground should be flat with illumination With good function of inflow and drainage.
Hose Nozzle (IPX5/6)
No. Item IPX5 IPX6
1 Water supply Water flow rate ＞ 12.5L/min±5% clean water without inclusion. It can be achieved by the stainless-steel water tank and pressurized equipment Water flow rate ＞100L/min±5% clean water without inclusion. It can be achieved by the stainless-steel water tank and pressurized equipment
2 The nozzle diameter Ф6.3mm Ф12.5mm
3 Water flow 12.5±0.625L/min,Flow meter is adjustable 100±5 L/min,Flow meter is adjustable
4 The distance from jet nozzle to enclosure 2.5~3m 2.5~3m
5 Testing time Not less than 1min/m²(not less than 3 mins) Not less than 1min/m²(not less than 3mins)
6 Pressure gauge 0~0.25MPa 0~0.25MPa
7 Site requirements Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage.
IEC 60529 Full‑featured IPX1‑IPX8 Integrated Waterproof Testing System Waterproof Test Equipment 2
Integrated Immersion Chamber & Control Cabinet (IPX7)
Item Parameter
Inner chamber size 650mm×600mm×1500mm
Water tank volume Approx. 500L
Temperature control Room temp ~ 65℃ (±3℃, PID)
Lifting distance 0~1200mm
Load capacity 100kg
Controller Mitsubishi PLC + 7-inch touch screen
Power Three-phase AC 380V, 50Hz
Dimensions 1400×750×1600mm
IEC 60529 Full‑featured IPX1‑IPX8 Integrated Waterproof Testing System Waterproof Test Equipment 3
Deep Immersion Tank (IPX8)
Item Parameter
Tank size φ600mm×1000mm
Pressure range 0~5bar (customizable)
Pressure gauge 0~6bar, 0.25 class
Test time 0~99min
Max pressure 5bar
Connection 3/4 high-pressure steel hose
IEC 60529 Full‑featured IPX1‑IPX8 Integrated Waterproof Testing System Waterproof Test Equipment 4
Turntable (IPX1~6 Accessory)
Item Parameter
Diameter φ600mm
Speed 1rpm
Tilt angle 0°, 15°
Rotation 90° / continuous
Material Industrial aluminum alloy
Dimensions 800×800×250mm

Frequently Asked Questions
Q1: What IP tests can SN4418 perform?
A: It supports full-range waterproof tests: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7, IPX8.
Q2: Which international standards does this system comply with?
A: It fully meets IEC 60529:2013 and IEC60335-1 Clause 15 for product waterproof certification.
Q3: Do I need extra control cabinets?
A: No. All units are centrally controlled by the integrated IPX7 control cabinet.
Q4: What is the difference between IPX7 and IPX8?
A: IPX7 is normal-pressure temporary immersion; IPX8 is high-pressure deep immersion up to 5bar.
Q5: What are the installation requirements?
A: Requires a dedicated waterproof test room with flat floor, drainage ditches, clean tap water and 10A waterproof leakage protection.
Q6: Can test parameters be customized?
A: Yes. Time, flow, pressure, temperature, angle can all be precisely set on the touch screen.
Q7: Is the equipment rust-proof?
A: Key parts use stainless steel; body uses industrial aluminum alloy. It is waterproof, rust-proof and long-lasting.
